A single access port into an enclosure or process vessel is all that is needed to allow multiple probes, sensors, etc., to pass through an environmental or pressure boundary using a single feedthrough assembly.

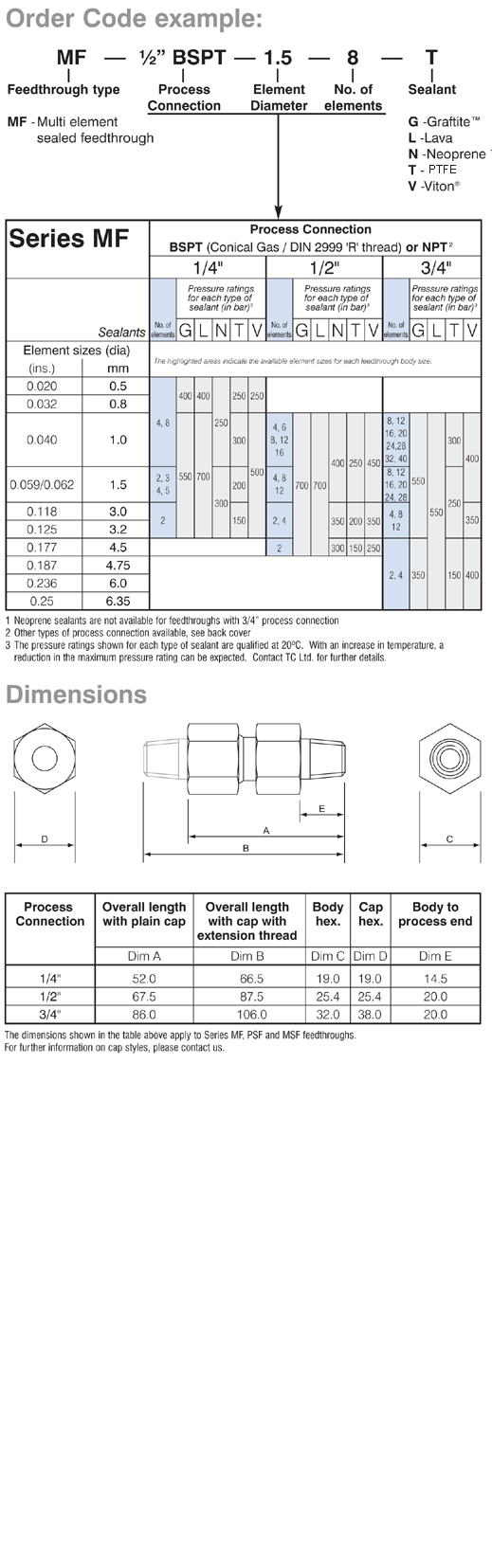

Series MF feedthroughs can seal multiple elements within a single assembly including typically up to 40 x 1.0mm dia., up to 12 x 3.0mm or up to 4 x 6.0mm elements. Please refer to the table for further details of feedthrough capacitiy and sizes of elements.

There are three body sizes having 1/4”, 1/2” and 3/4” process connections in either BSPT (conical gas or DIN 2999 ‘R’) and NPT threads.

Spectite feedthroughs are designed for ease of assembly and installation. Elements can be adjusted, removed and replaced when not under pressure or vacuum conditions.

Saves time and costs by allowing multiple sensors to pass through one feedthrough fitting

Immersion length of each element can be easily adjusted

Three sizes of sealed feedthrough for probes, sensors, etc.

Designed for carrying multiple elements 0.5mm to 6.35mm diameter

Suitable for a mixture of sizes and types of elements

Pressure range: Vacuum to 700 bar*

Temperature range: <-200°C to +870°C*

Stainless steel body (316L), internal metal components and cap

Choice of five sealant materials

Reusable fitting – sealant and internal components replaceable

* dependent on sealant and fitting selected
